Stainless Steel Camlock Coupling Type A

With years of experience in production Stainless Steel Camlock Coupling Type A XunChi®, NingBo ZhenHai XunChi Hardware & Machine Co., Ltd. can supply a wide range of Stainless Steel Camlock Coupling Type A. High quality Stainless Steel Camlock Coupling Type A can meet many applications, if you need, please get our online timely service about Stainless Steel Camlock Coupling Type A. In addition to the product list below, you can also customize your own unique Stainless Steel Camlock Coupling Type A according to your specific needs.

Send Inquiry PDF DownLoad

Product Description

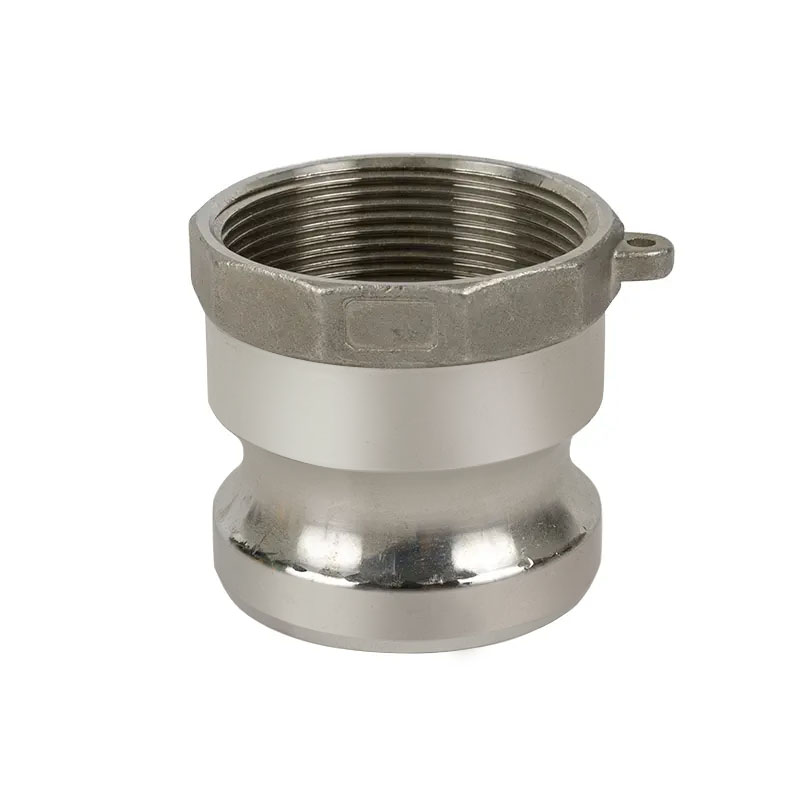

Stainless Steel Camlock Coupling Type A XunChi®
Standard: Our Camlock Fitting are made to standard of A-A-59326 (previously called MIL-C-27487) or DIN 2828.
Casting method: Investment casting
Sizes available: From 1/2″ to 8″

Description:

● Body material：Stainless steel 316 or 340
● Handles &pins：Stainless steel
● Gaskets：Buna-N, EPDM,PTFE &food grade silicone gasket
● The thread of camlock fittings is BSP, BSPT, NPT, G (ISO 228.1), and R (DIN2999).
● Working pressure:50-250 Psi( depending on size and temperature)
● Manufacture method：precision casting

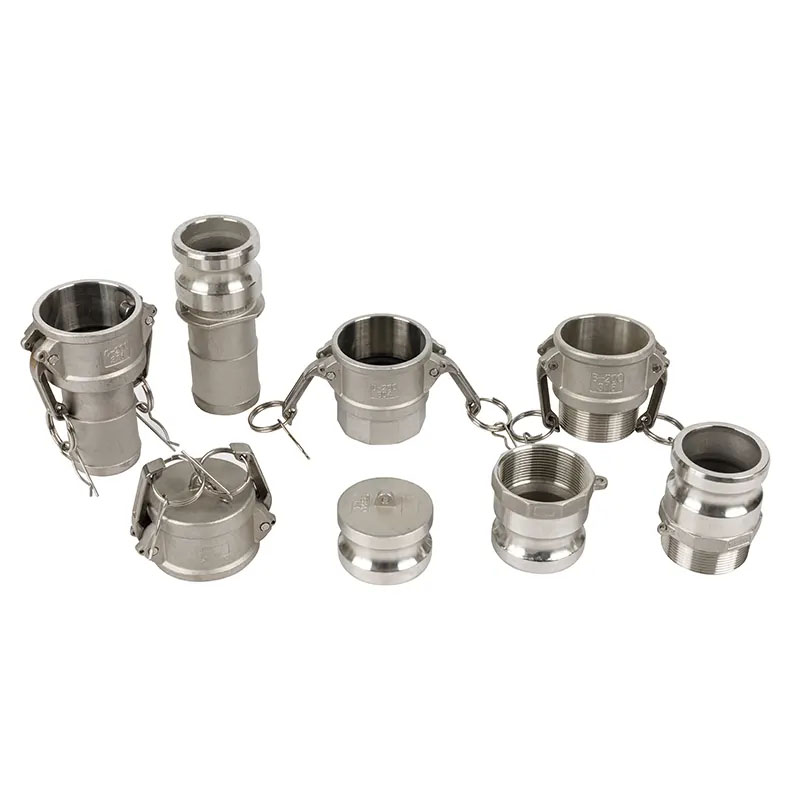

The use and connection way of cam and groove couplings: Type A camlock can usually be used with D type, C type, DC type. （ Dust Cap ） To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
